CNCGLASS-Vacuum-Process-Materials-Product-Summary

This product summary covers six CNCGLASS vacuum process materials used in oven curing, vacuum infusion, and related lamination work.

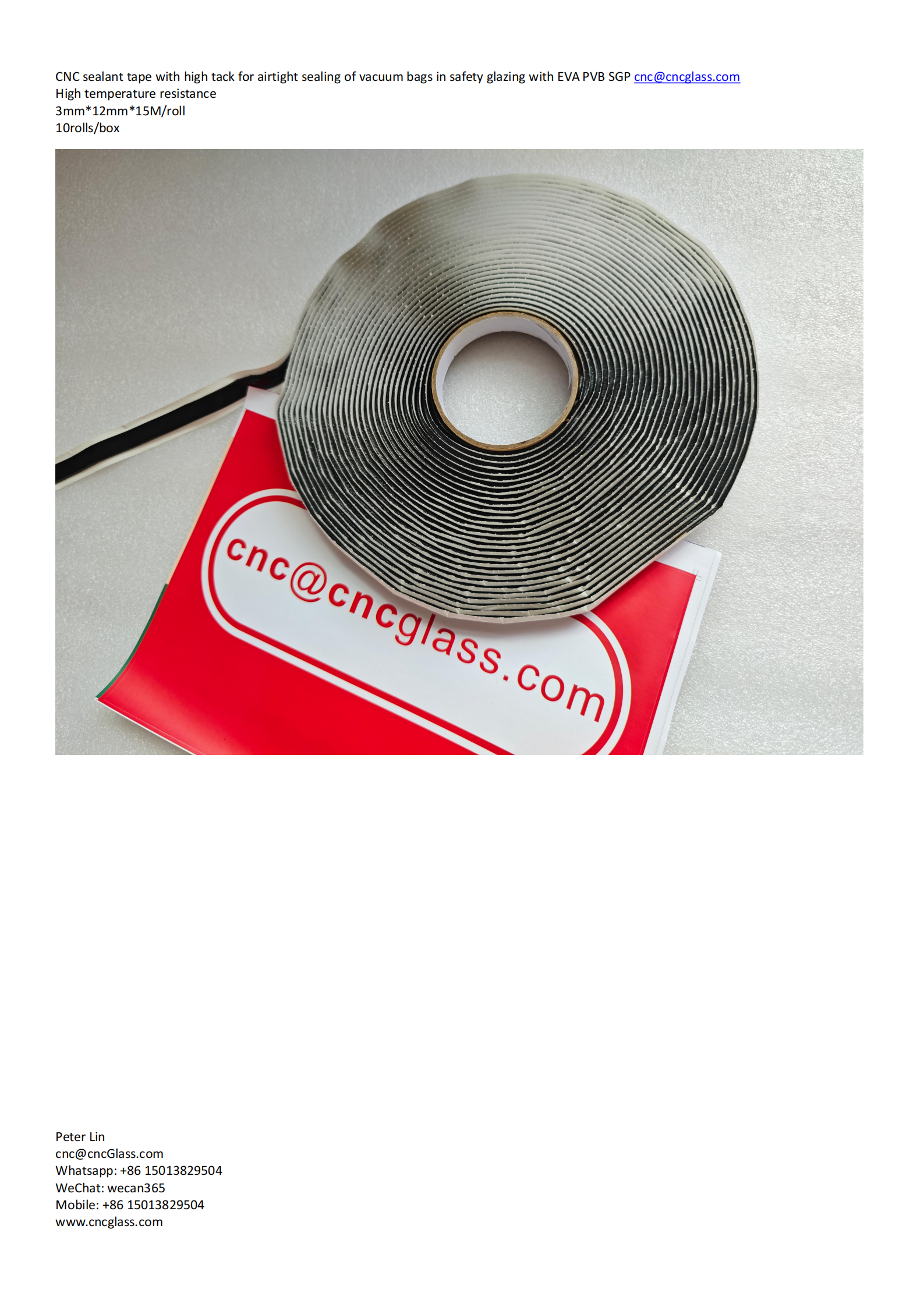

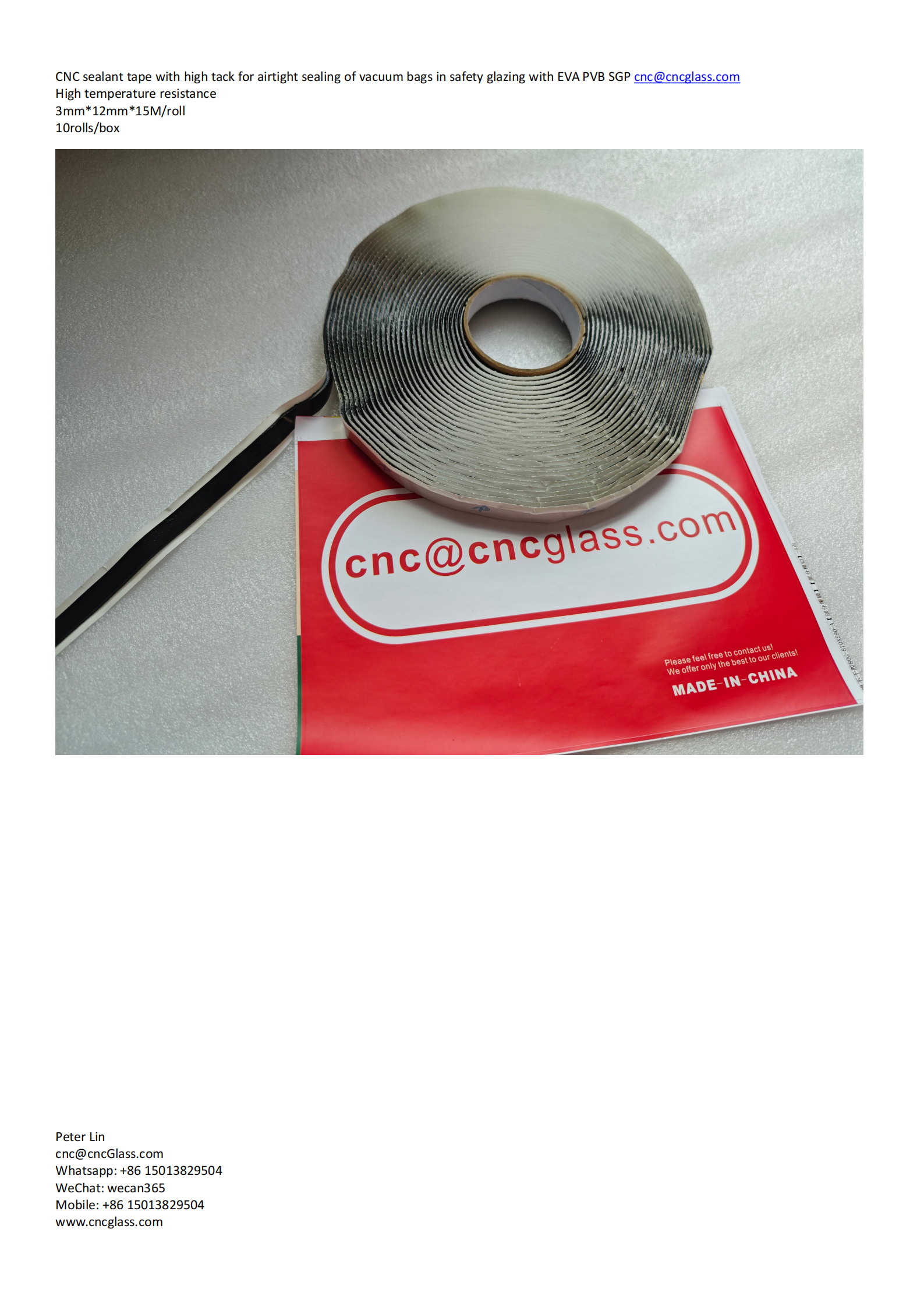

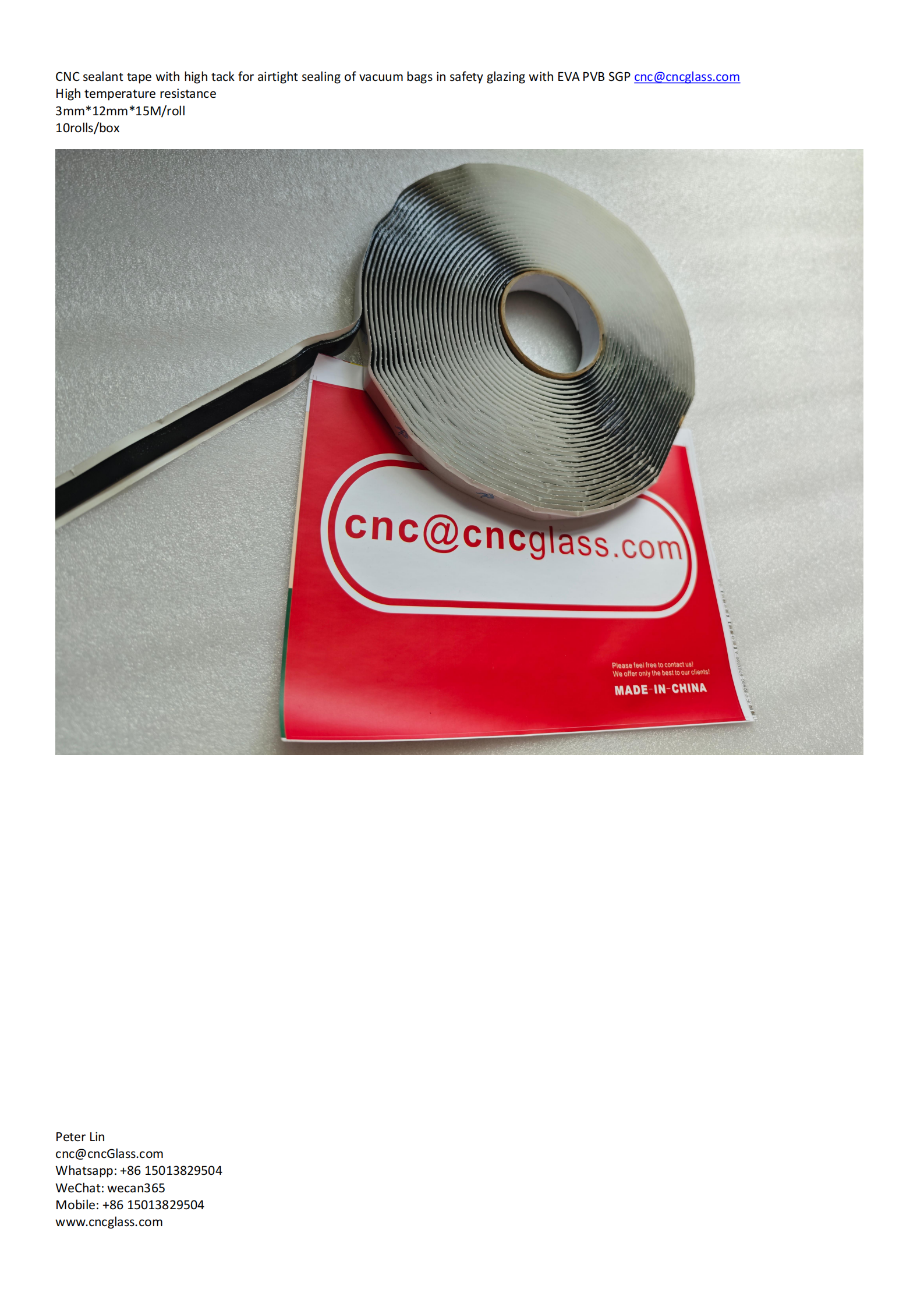

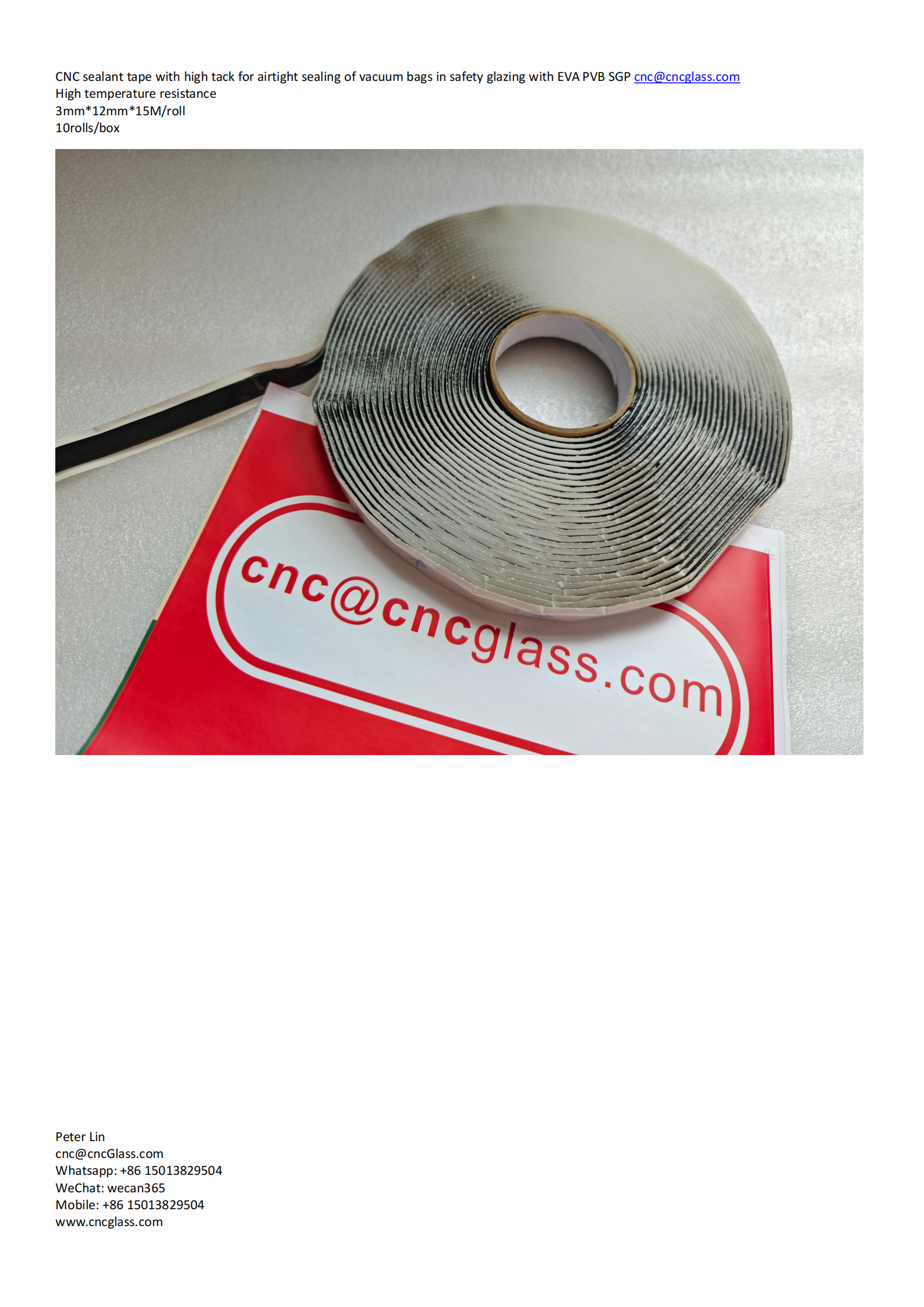

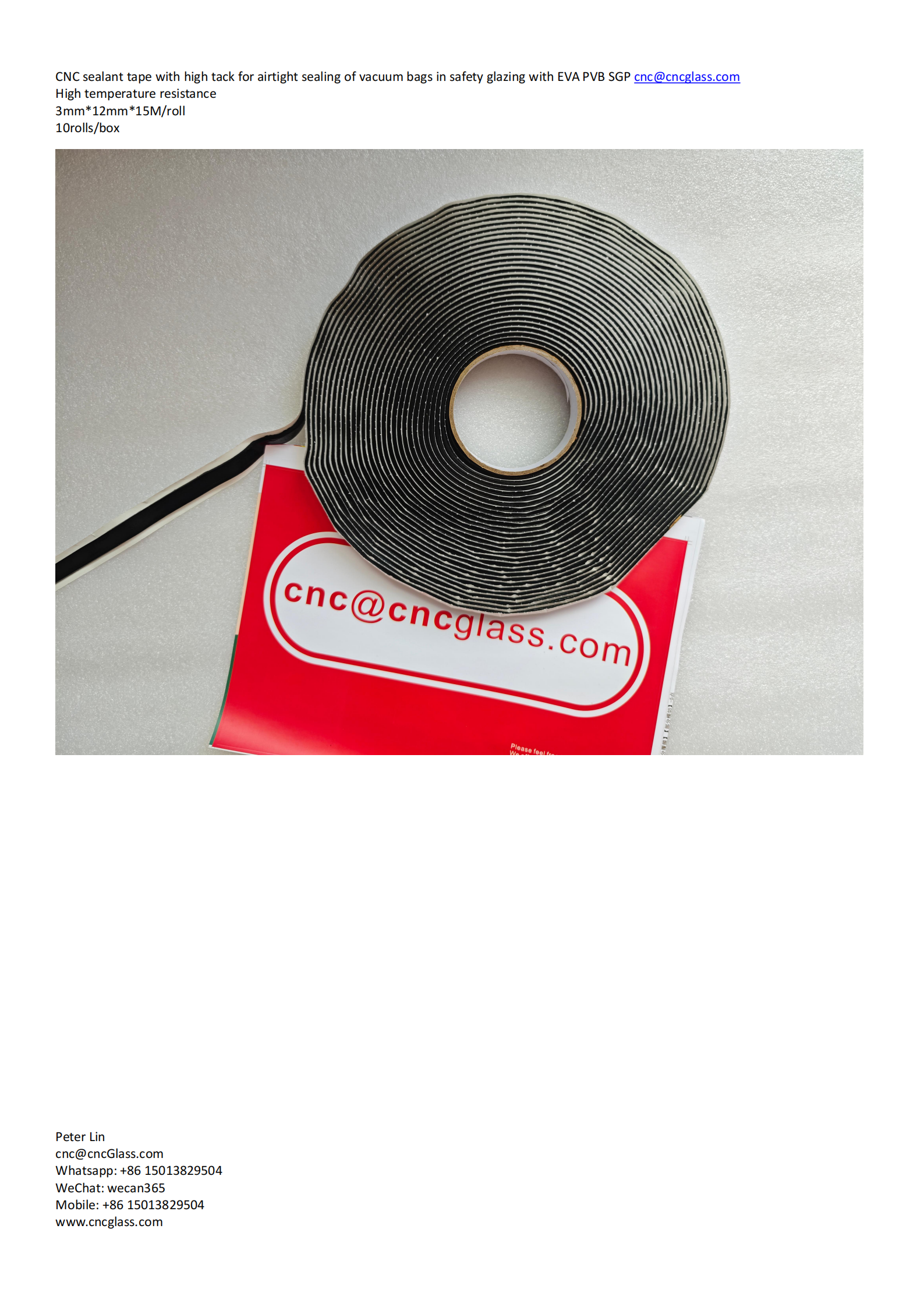

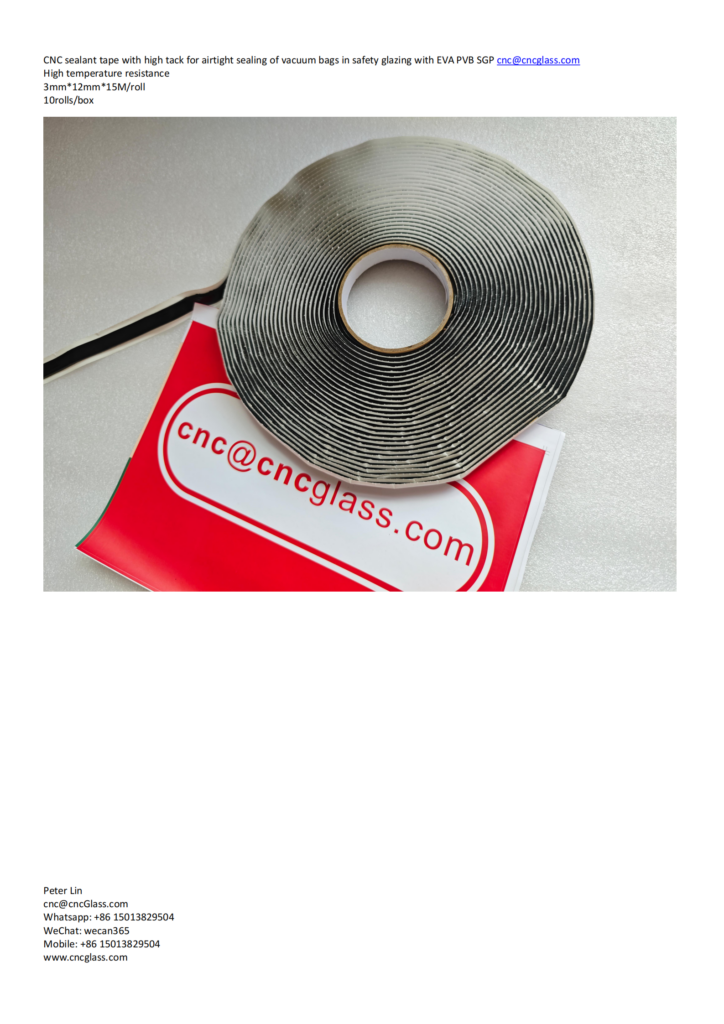

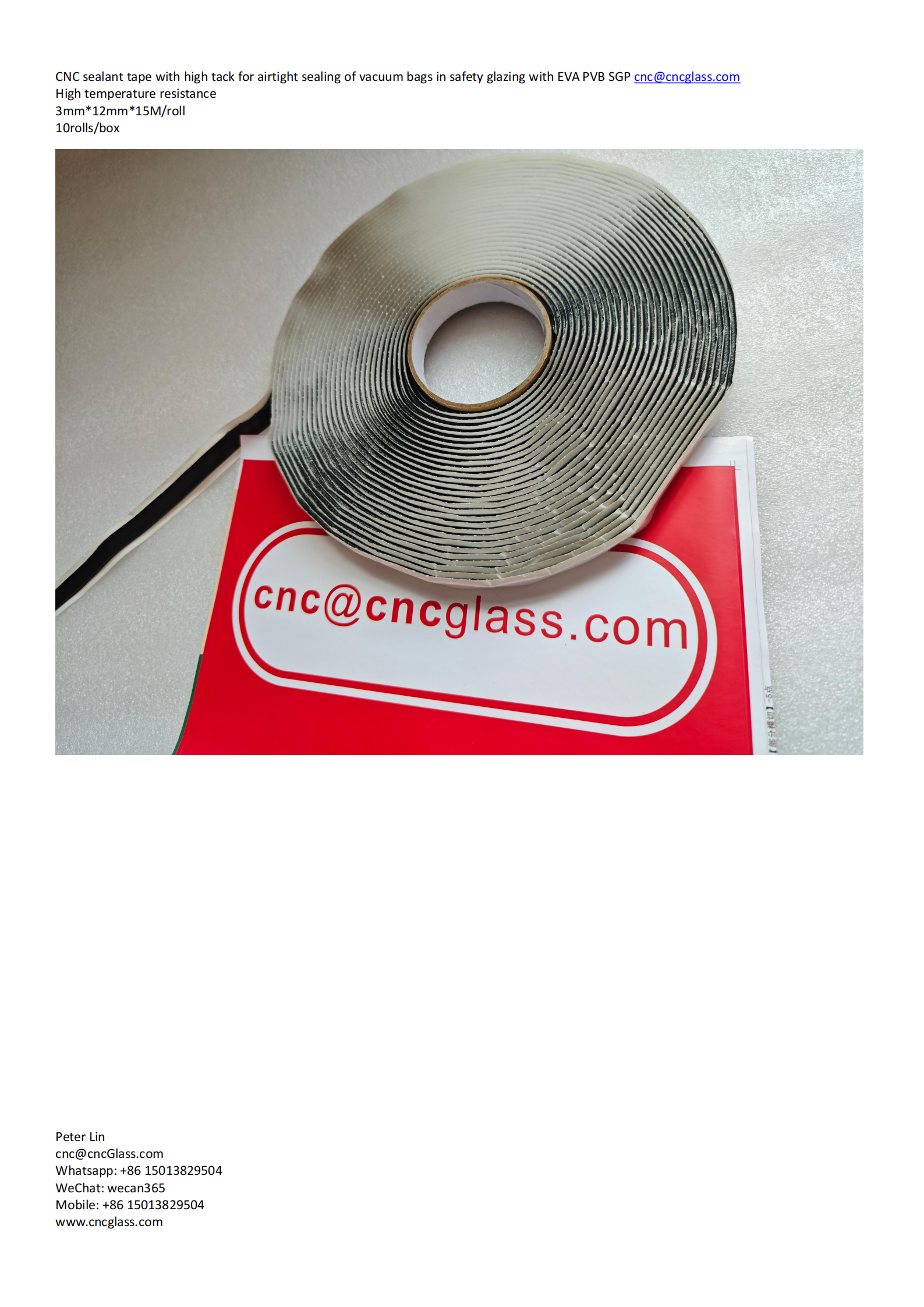

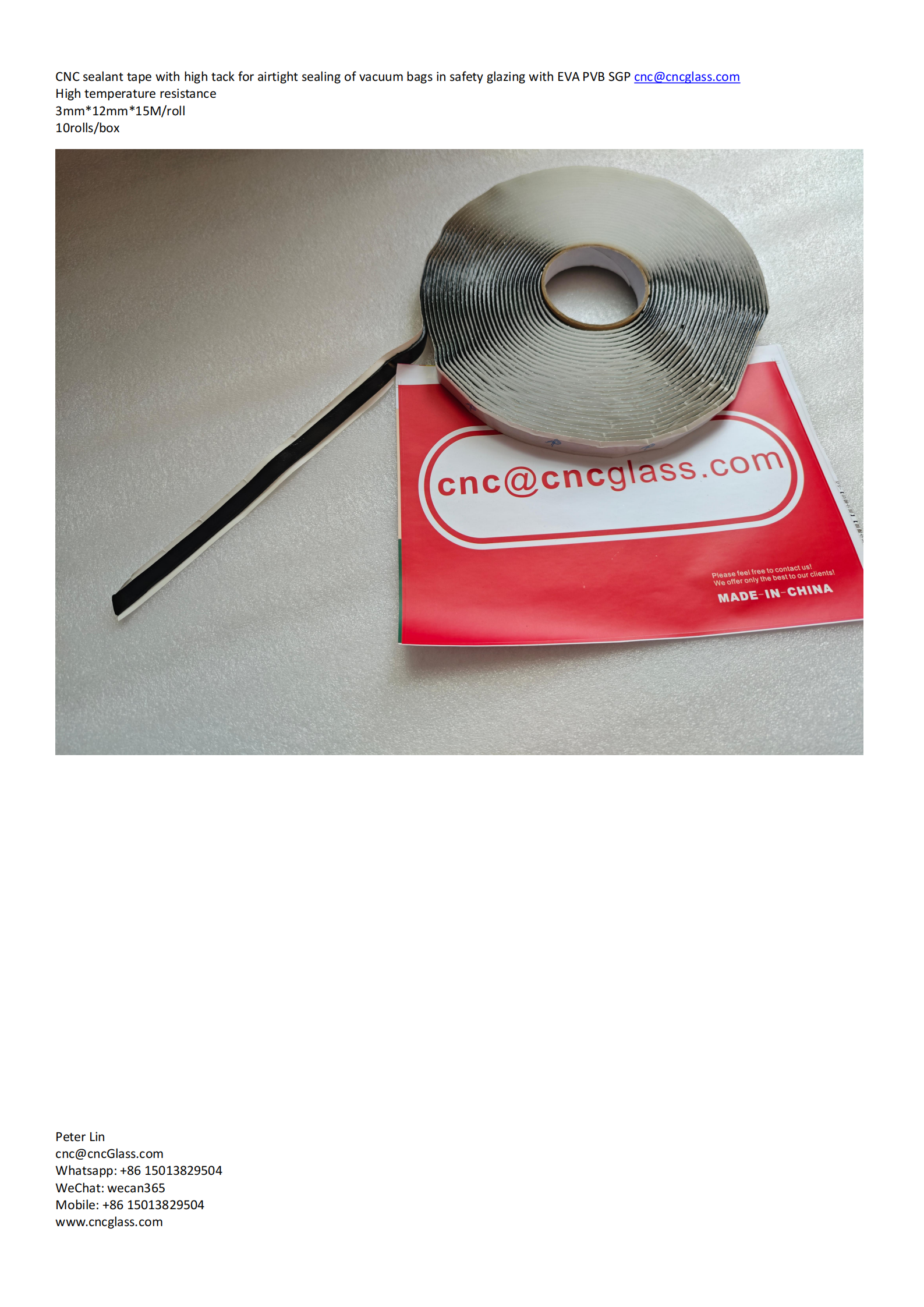

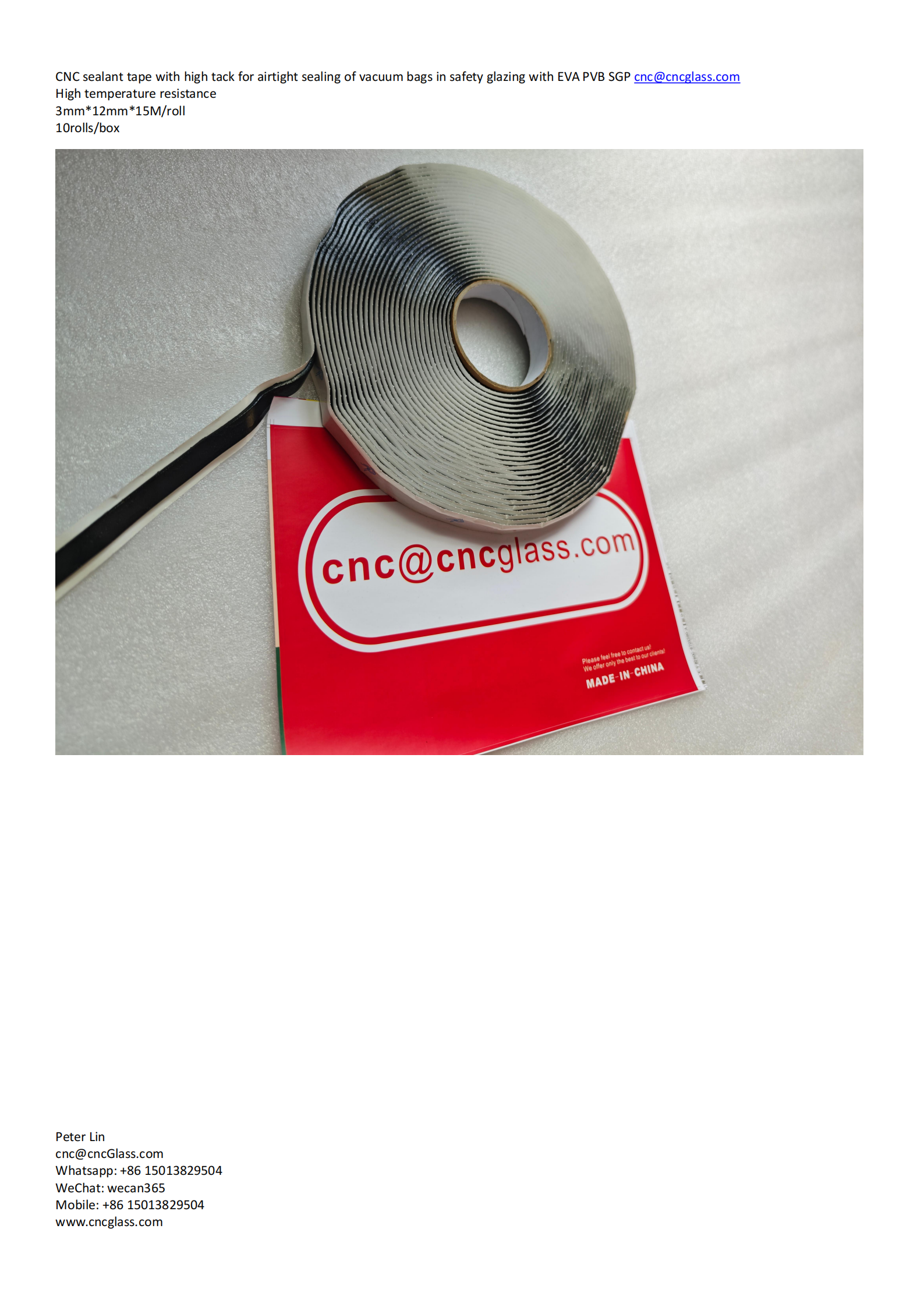

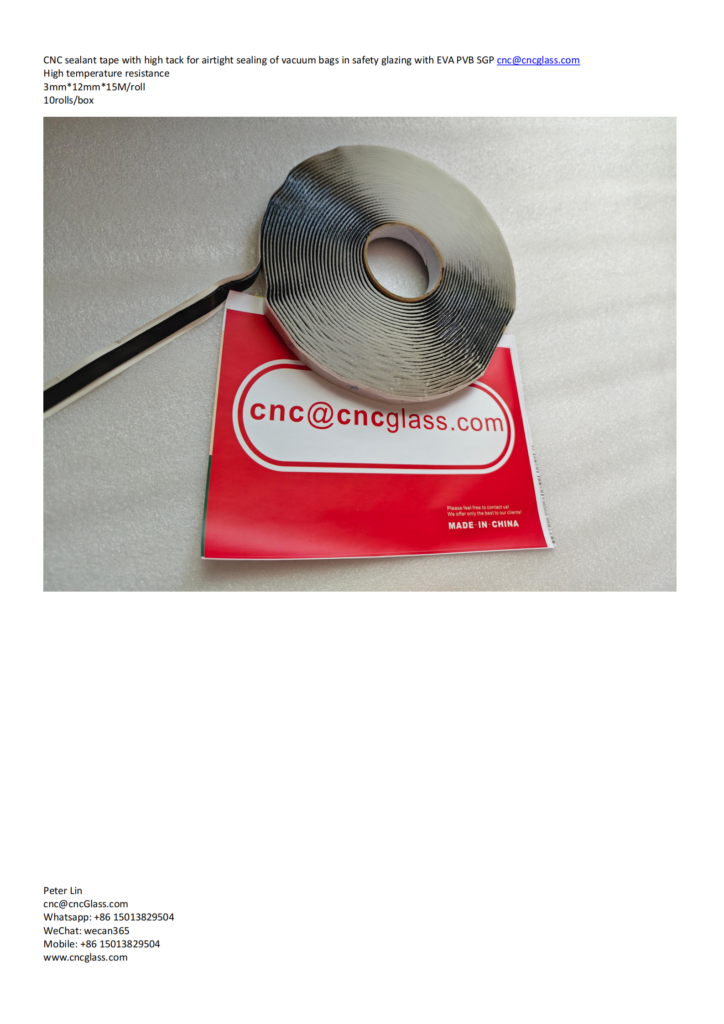

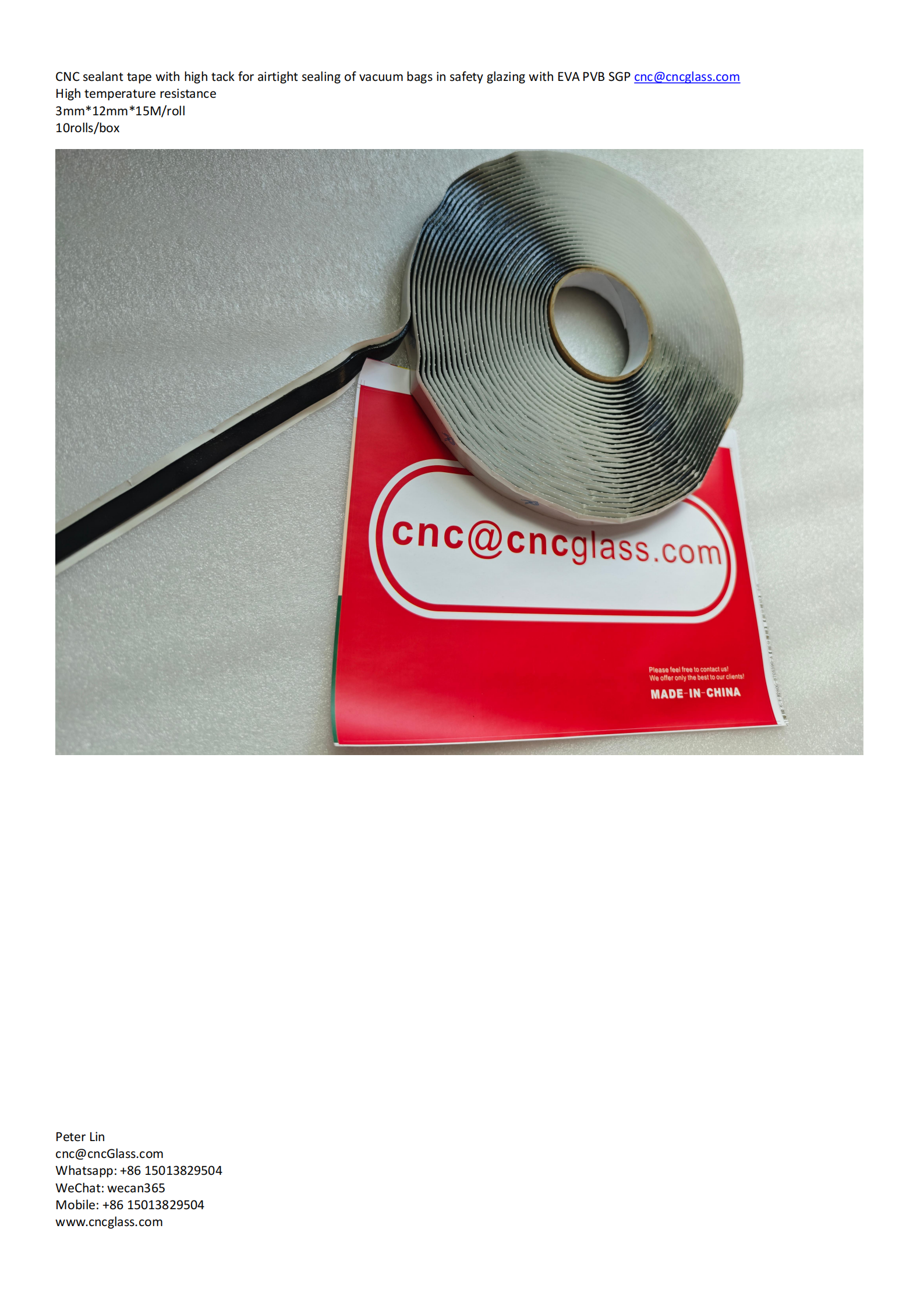

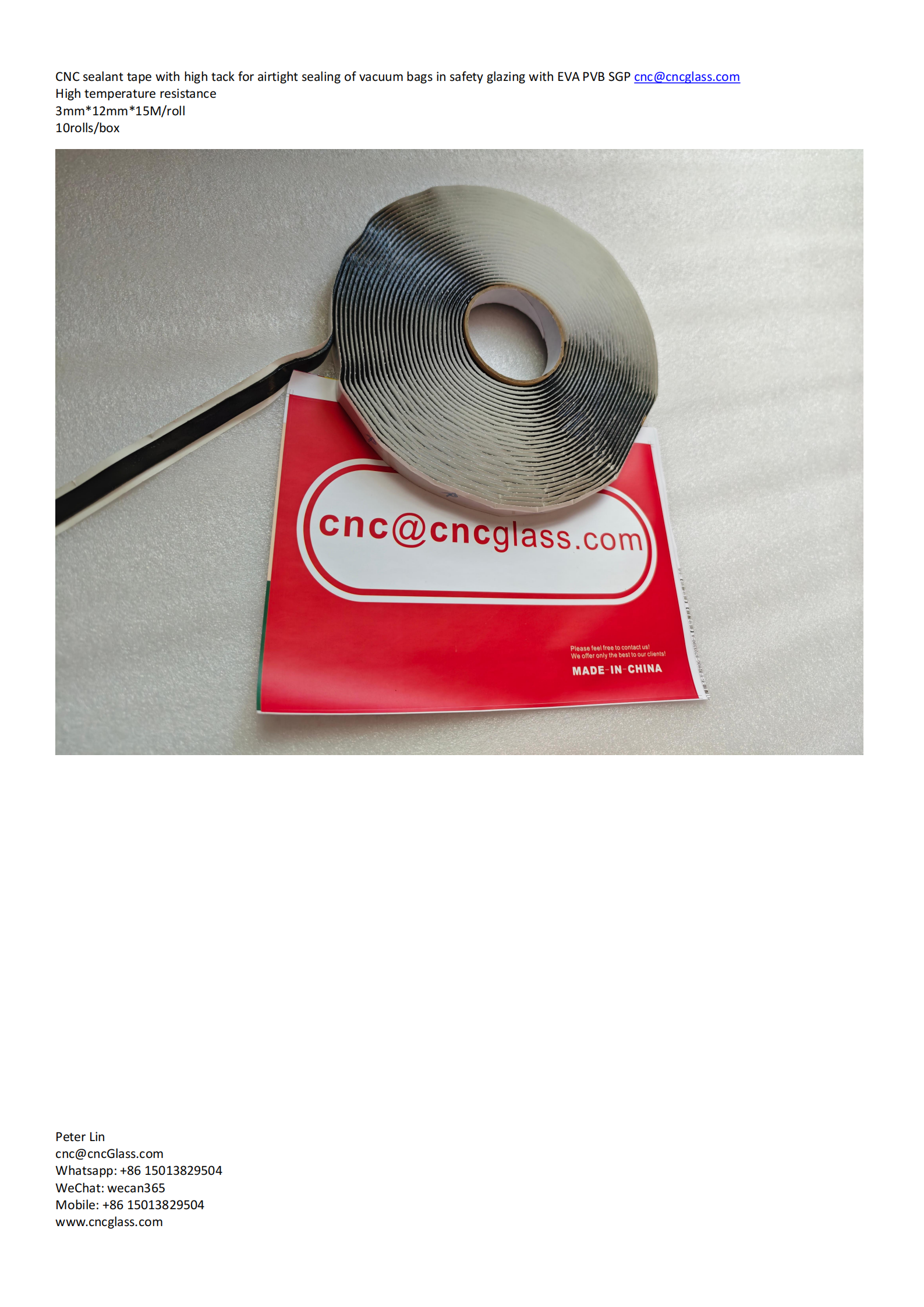

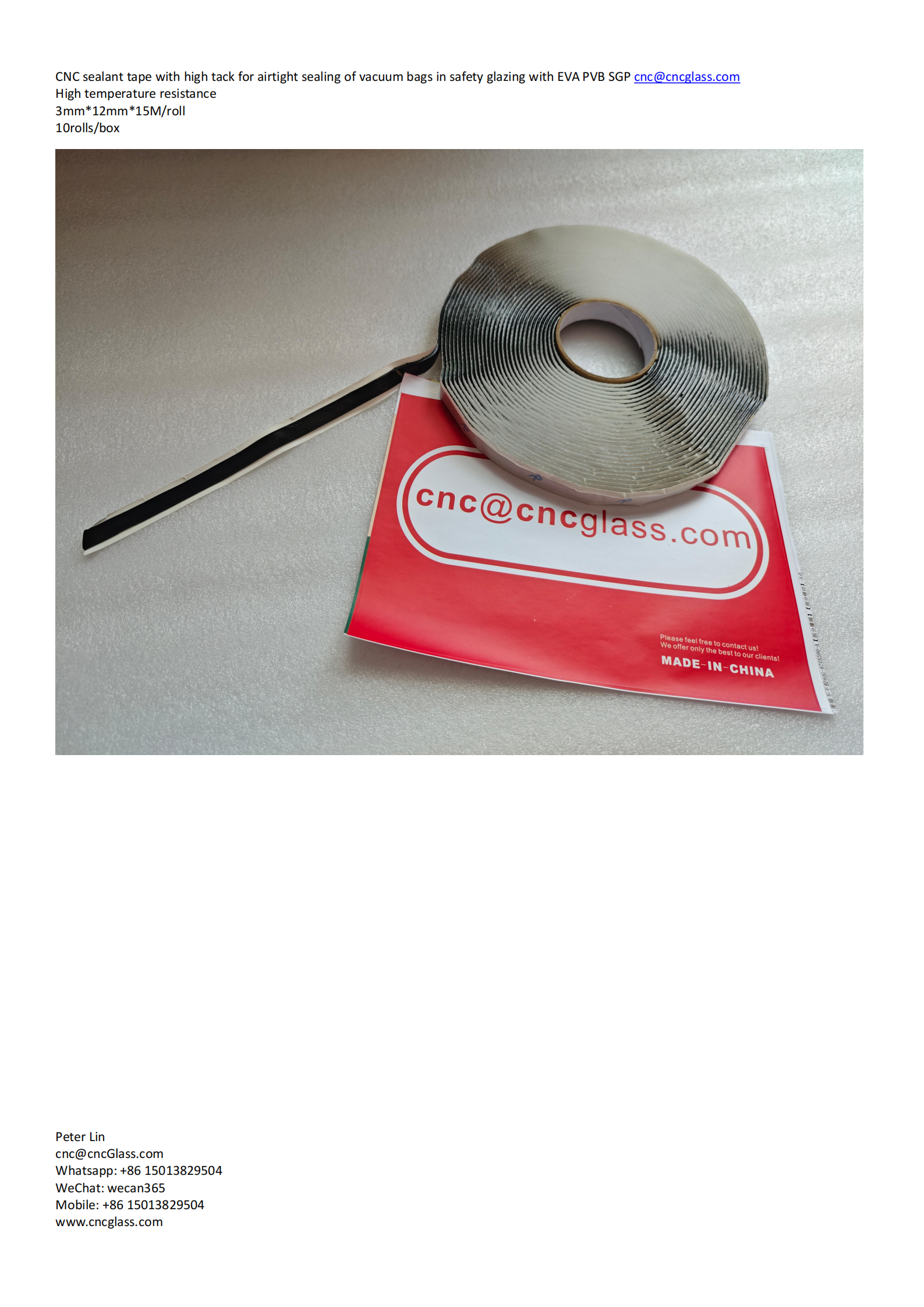

The multilayer polyester–nylon vacuum bagging film is intended for oven curing up to 160°C. Typical thicknesses are 50 μm, 65 μm, and 75 μm, with widths up to 12 m, in tube, sheet, or centerfold supply. The film is yellow. A synthetic-rubber vacuum bag sealant tape is rated for process use from room temperature up to 200°C, typically 3 mm × 12 mm × 15 m, in yellow, and is described as peeling from the mold after the cure cycle. A silicone-coated nylon peel ply is listed for vacuum infusion, hand lay-up, and prepreg stacks up to 204°C; typical values are about 62 g/m² and 0.11 mm thickness, with a standard roll about 1.52 m × 91 m, in blue.

A polyolefin release film is rated up to 158°C, typically about 40 μm thick and 1.5 m wide, in red, and is offered perforated or non-perforated. A nonwoven polyester breather felt of about 340 g/m² is listed for high-pressure vacuum bagging and prepreg work up to 204°C, with a typical roll about 1.52 m × 46 m, in white. A high-temperature polyester pressure-sensitive tape is rated up to 204°C for holding breather, release film, peel ply, and bag film during layup; typical widths are 25.4 mm and 50.8 mm × 66 m, in blue. This catalog does not list prices. Enquiries can be sent to cnc@cncglass.com. The full catalog is in the PDF below.

CNCGLASS-SGP-Ionoplast-Interlayer-Ultra-Clear-White-Solar-Control

This catalog presents CNCGLASS SGP ionoplast interlayer in three ranges: a high-transparency Super Clear / Ultra Clear grade for structural and visual work, a White series for privacy and even light diffusion, and a solar-control grade that adds thermal performance while keeping the mechanical character of an SGP-type ionoplast interlayer.

CNCGLASS Super Clear SGP is a high-transparency ionoplast interlayer for structural laminated safety glass. The Ultra Clear optical grade is intended for assemblies in which the interlayer should all but disappear, such as glass fins and ribs, walk-on floors, balustrades, skylights, and other multi-ply build-ups. The formulation contains no plasticizer. The ionoplast also bonds to stainless steel and aluminum, which is relevant for frameless, point-fixed, and all-glass structures. Standard Super Clear listings include thicknesses of 0.76 mm, 0.89 mm, 1.14 mm, and 1.52 mm, with listed widths of 1600 mm, 2000 mm, and 2440 mm; other specifications can be produced to order.

The White series uses the same ionoplast platform in three grades: Super Milky White SGP (opaque, high privacy), Super Sandblasting White SGP (medium privacy; light passes through, but shadows and objects behind the glass are isolated), and Mist White SGP (frosted white, transmitting about 50% of incident light and shadow). Standard supply listed for the first two white grades is 0.76 mm, with the same standard widths and 100 m per roll. Custom widths can be supplied up to 4300 mm.

The solar-control / heat-insulating grade is listed at 0.76 mm, with visible transmittance of at least 70%, UV rejection of at least 90%, total IR rejection of at least 85%, total solar energy rejection of at least 50%, a solar heat gain coefficient (SHGC) of 0.238, and a shading coefficient of 0.274. The catalog also includes recommended cycles for laminating SGP glass in an EVA vacuum oven and in an autoclave. This catalog does not list prices. Enquiries can be sent to cnc@cncglass.com. The full catalog is in the PDF below.
