CNCGLASS-Silicone-Vacuum-Bags-and-Sheets-for-Glass-Lamination

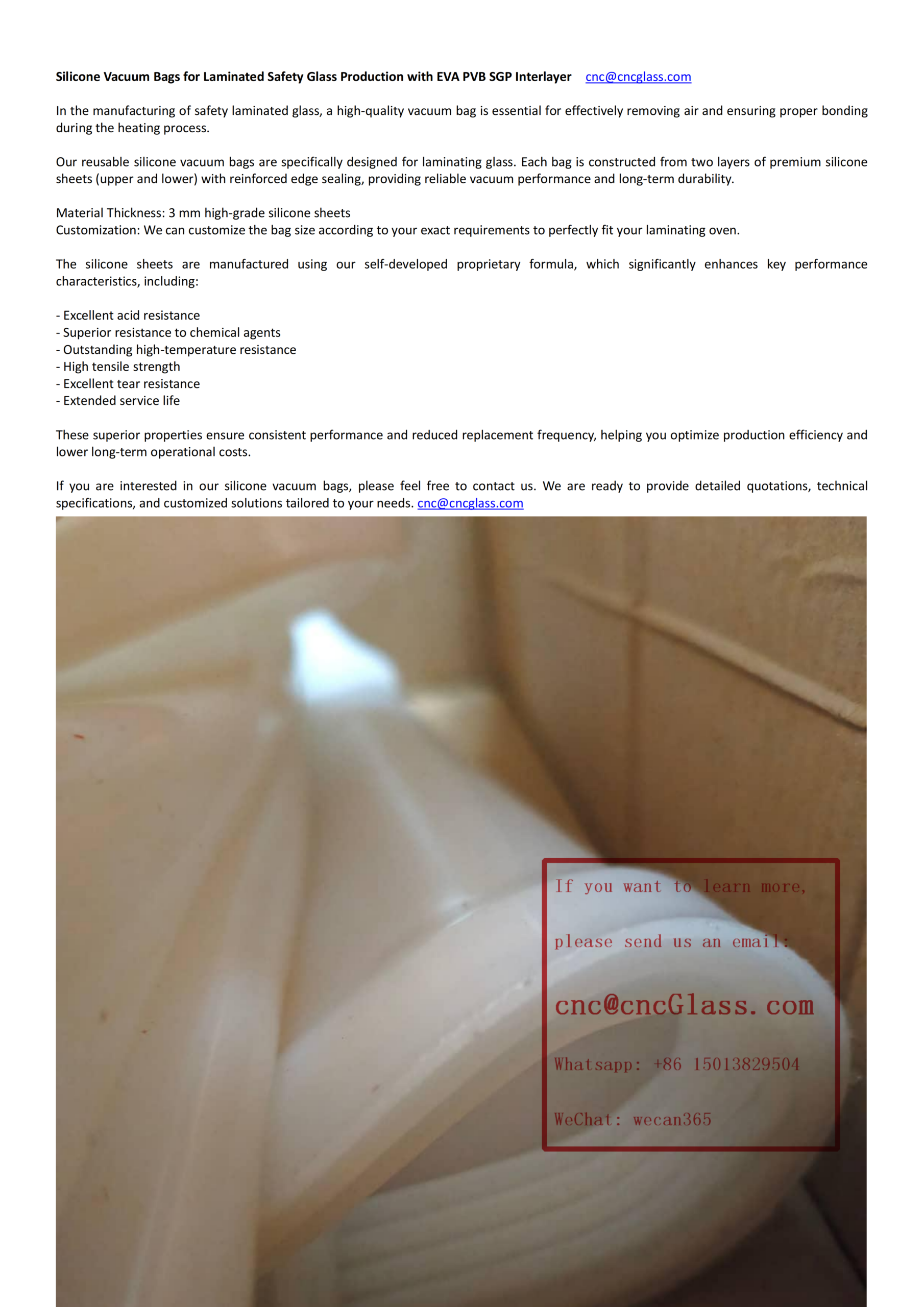

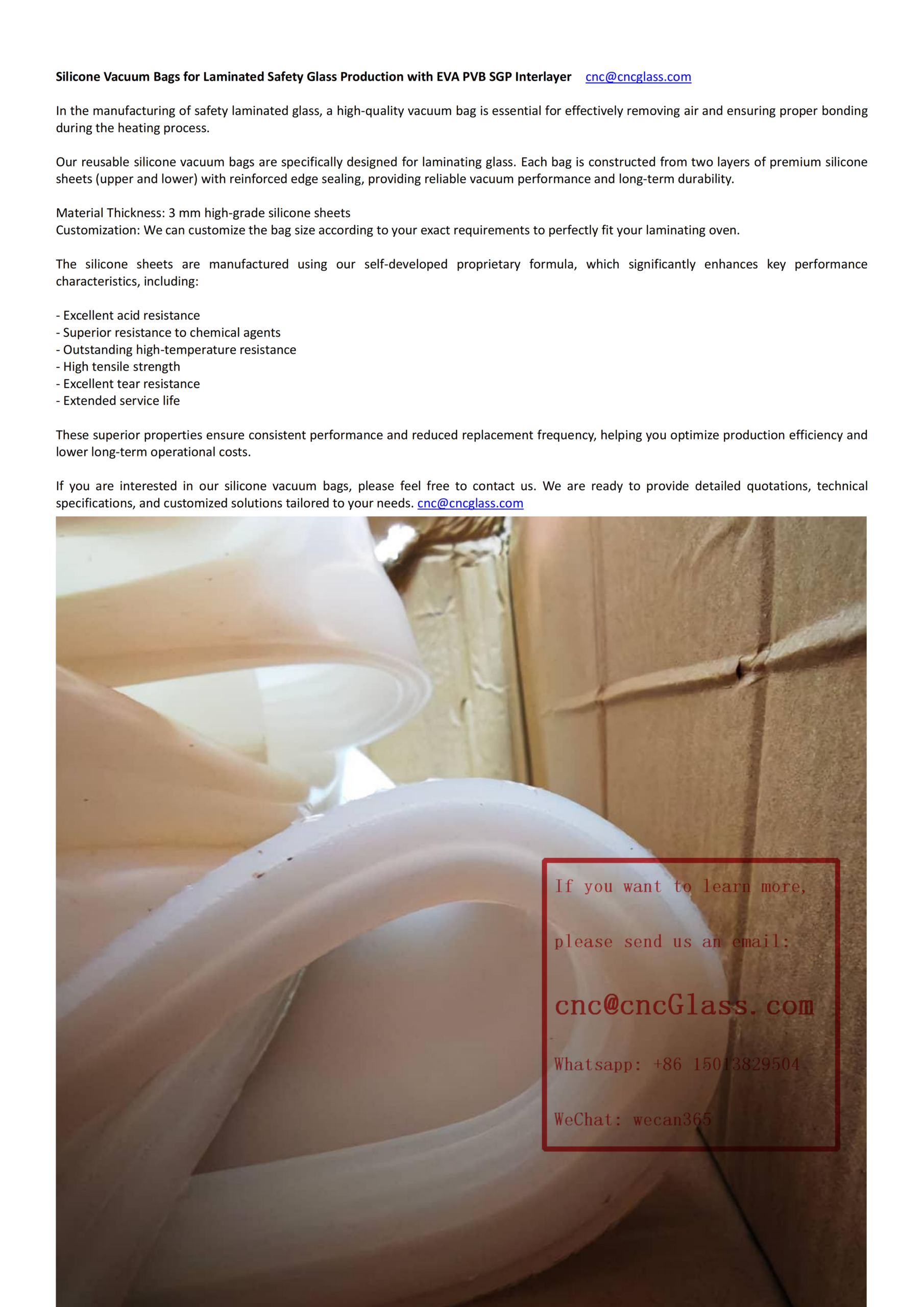

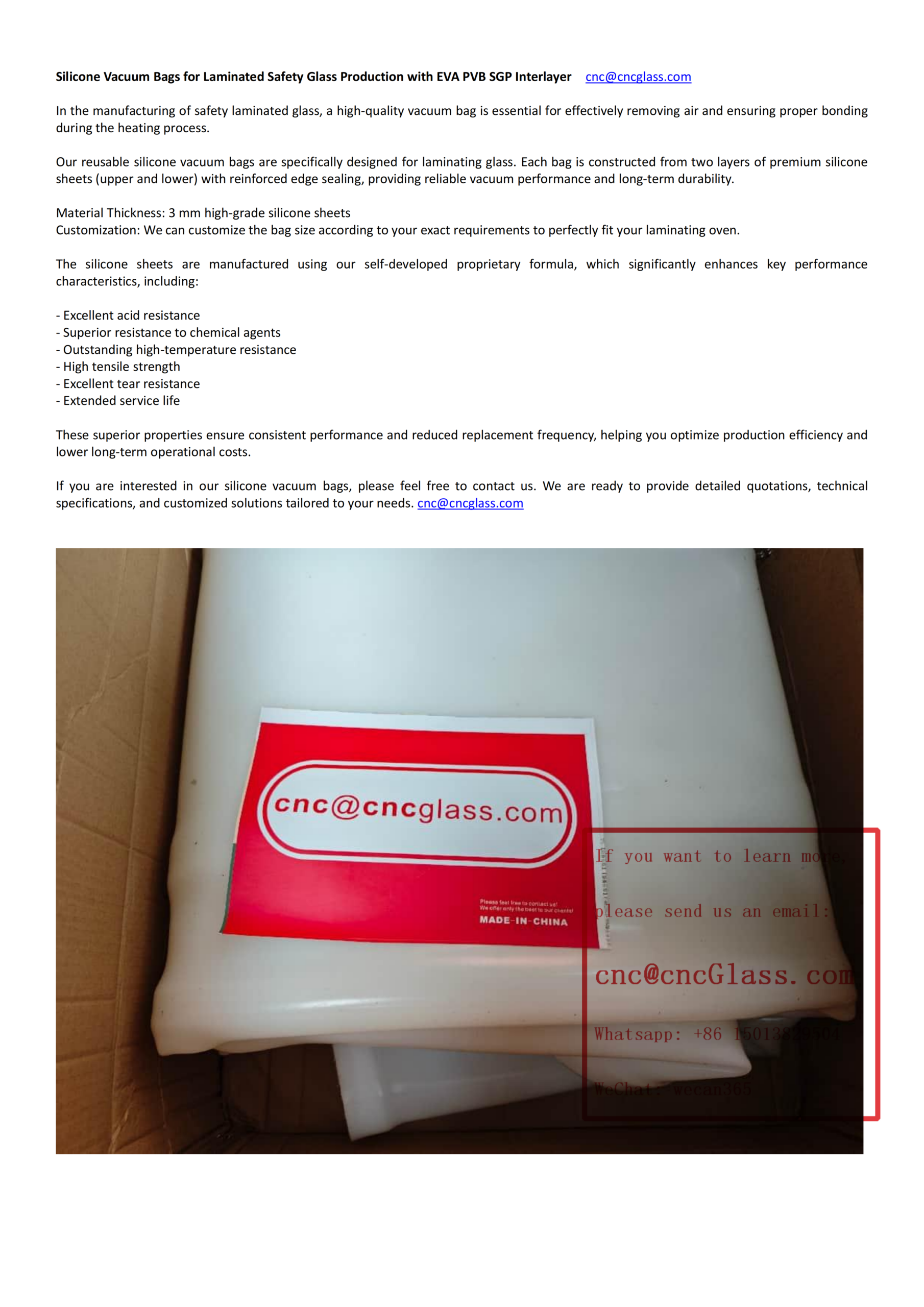

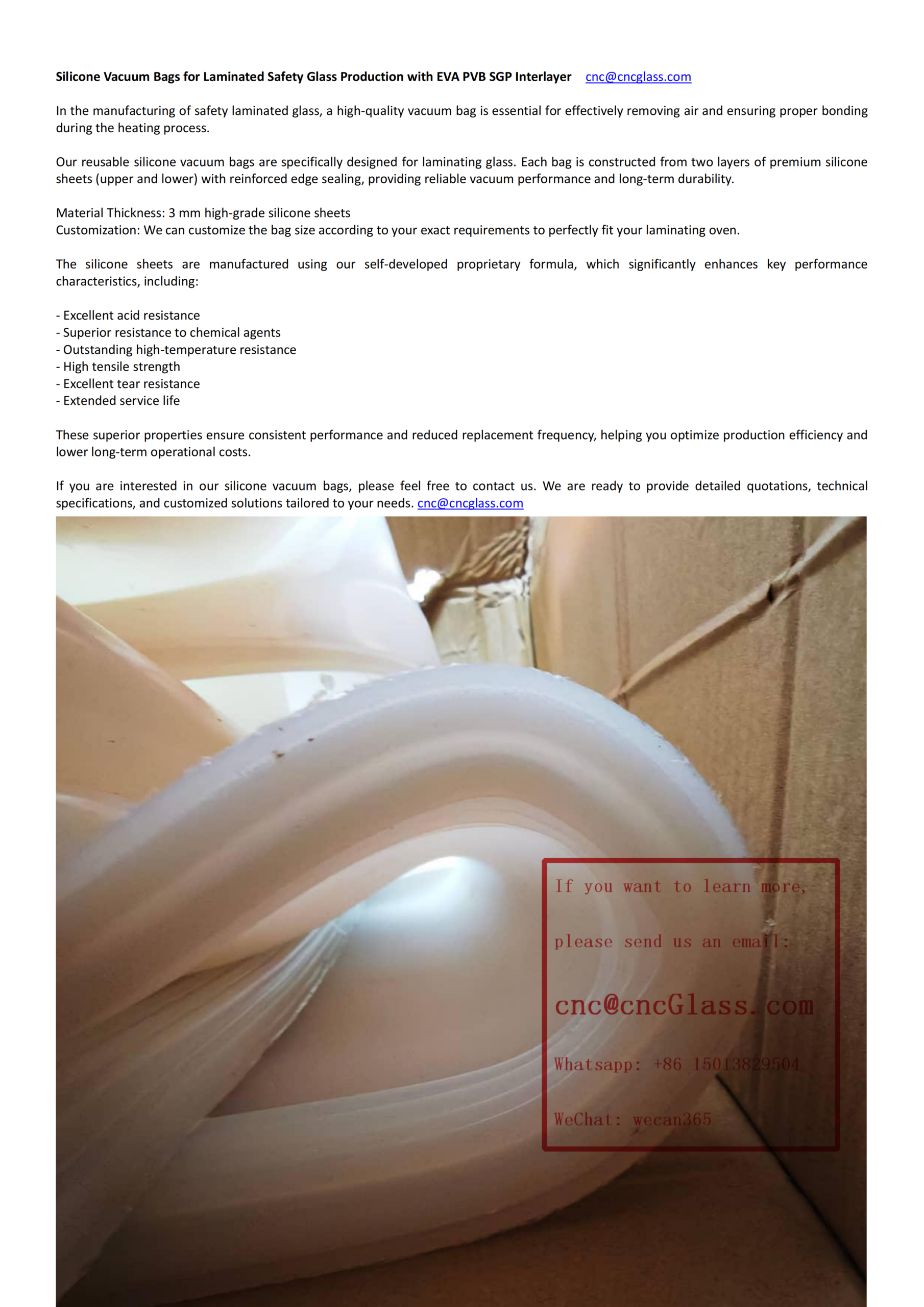

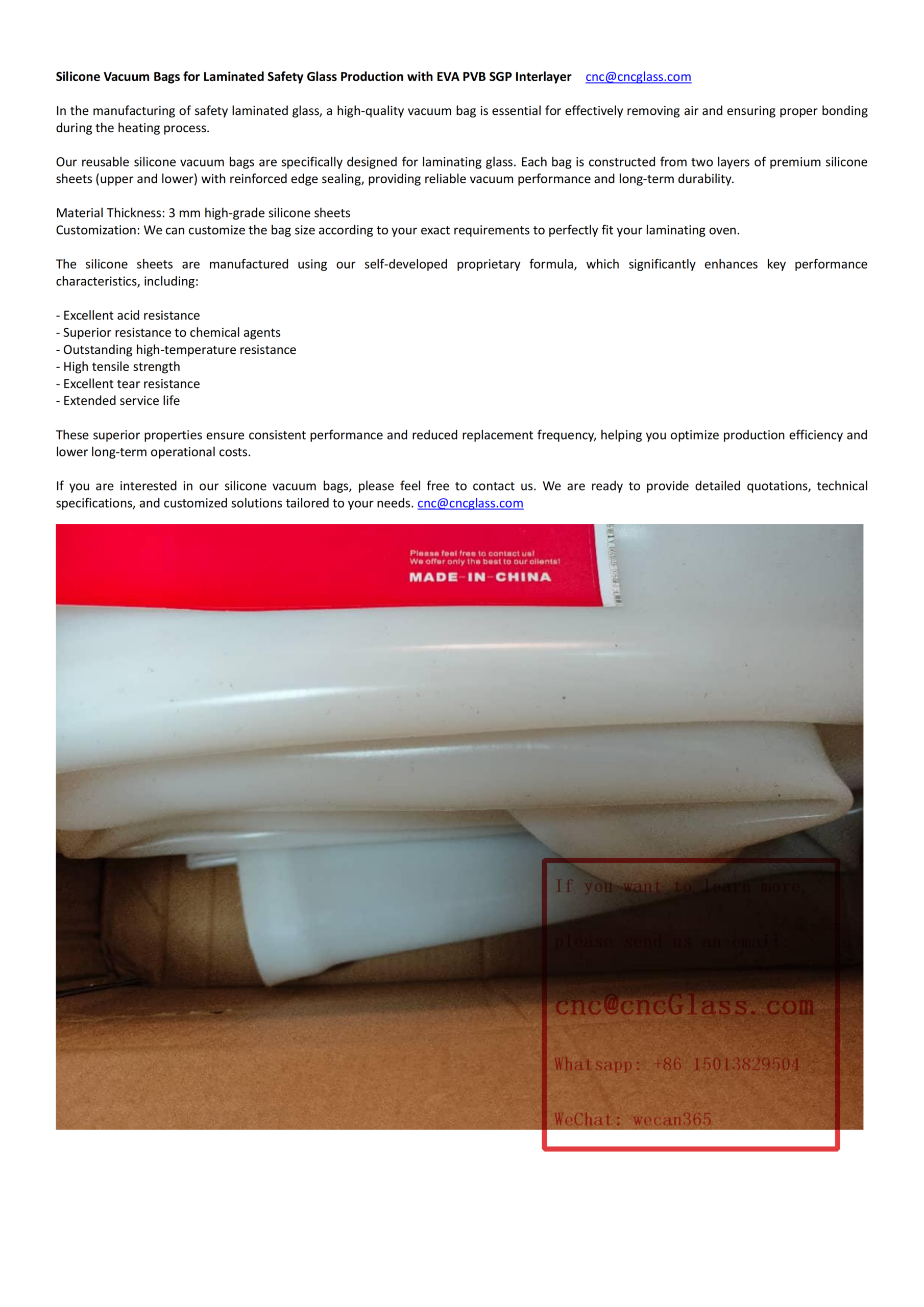

This catalog covers CNCGLASS silicone vacuum bags, supplied as two silicone sheets sealed at the edges, together with silicone sheets for glass-lamination vacuuming, solar-panel laminators, and hot vacuum press machines.

The vacuum bags are available in white, green, and blue. The position of the two vacuum holes can be customized; by default they are placed at the corners of one short side. Bags are specified by their external size, which is confirmed at enquiry.

Blue and white silicone sheets for vacuuming in glass lamination are listed at 3 mm × 2.95 m × any length, with hardness 55 ± 5 Shore A, a long-run temperature of 200°C, and a normal service life of more than 3,000 cycles. A green fabric-inserted silicone sheet for glass lamination machine vacuuming is listed at the same size, with hardness 58 ± 5 Shore A, a long-run temperature of 200°C, and a normal service life of more than 3,000 cycles. A fabric-inserted silicone rubber sheet for solar-panel laminators is listed at 4 mm × 2.95 m × any length, with hardness 70 ± 2 Shore A, a long-run temperature of 240°C, and a normal service life of more than 5,000 cycles. Thin silicone membranes for hot vacuum press machines are listed at 2 mm or 1 mm × 2.95 m × any length, with hardness 40 ± 5 Shore A, a long-run temperature of 220°C, elongation of 750%, and a normal service life of more than 3,000 cycles. This catalog does not list prices. Enquiries can be sent to cnc@cncglass.com. The full catalog is in the PDF below.

CNCGLASS-Green-Polyester-PET-Tape-for-EVA-Laminated-Glass

CNCGLASS Green Polyester / PET Tape is a high-temperature-resistant tape used to fix pre-laminated glass with EVA film and to help prevent melted EVA from overflowing through the laminated glass edges in the oven when heating.

The datasheet lists a green polyester tape sheet with silicone adhesive. Typical values are a tape-sheet thickness of 0.06 ± 0.005 mm, a sealant thickness of 0.035 ± 0.005 mm, temperature resistance of 200°C, tear strength of 135 N / 25 mm, adhesive strength of 8.0 N / 25 mm, and elongation of 70%. Standard roll sizes listed are 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, and 60 mm, all at 66 m per roll. Other widths can be customized within 980 mm.

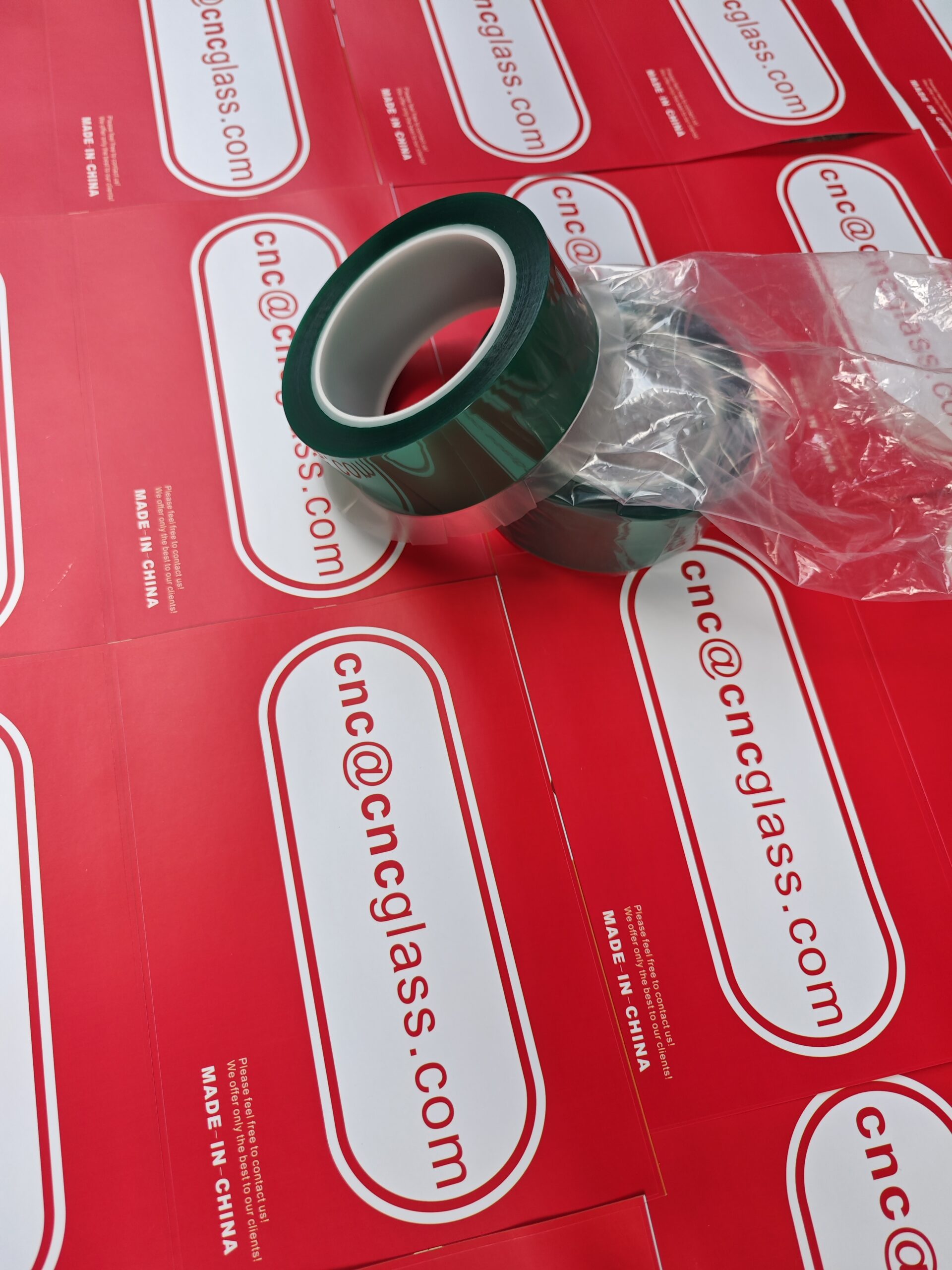

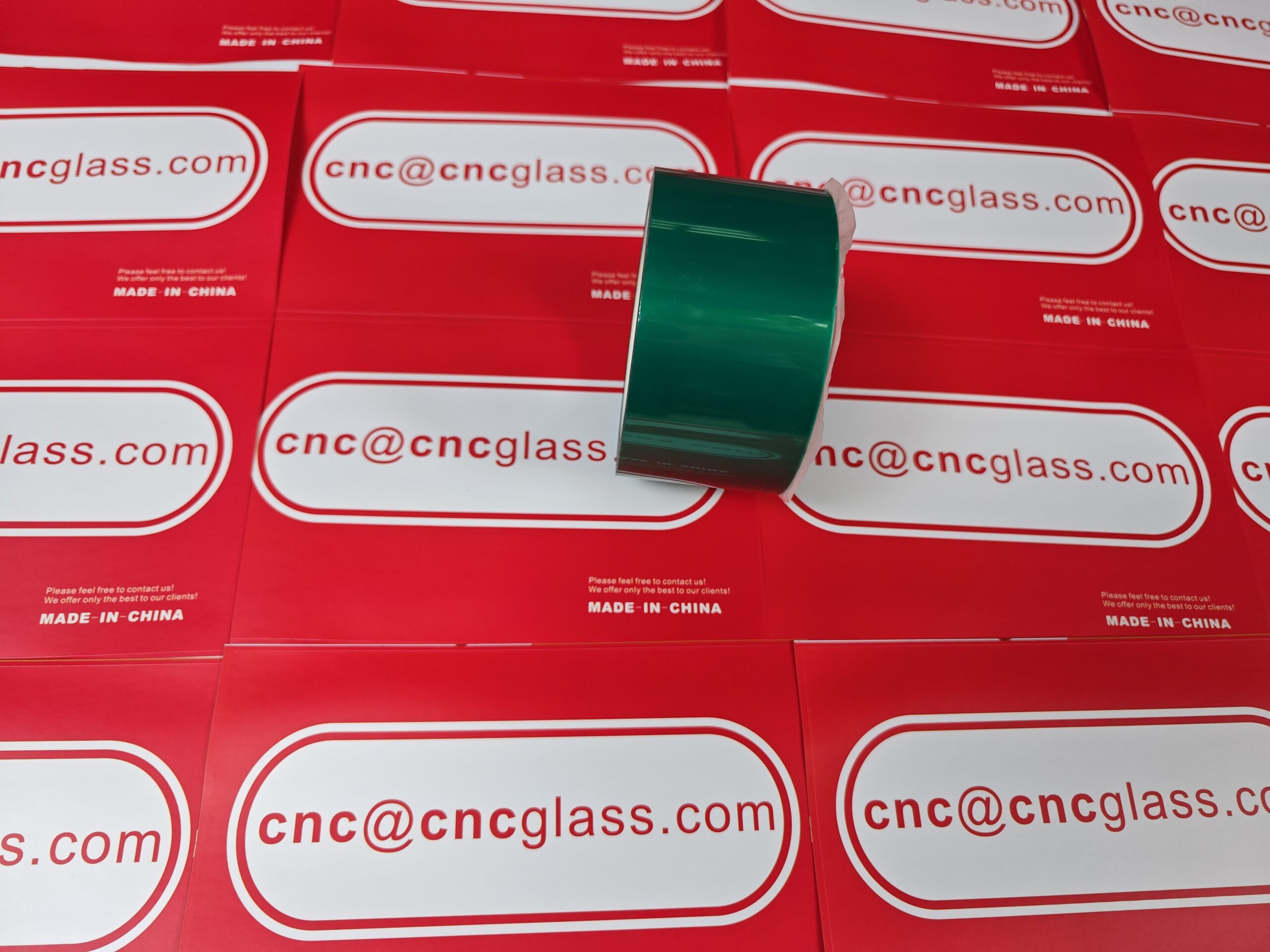

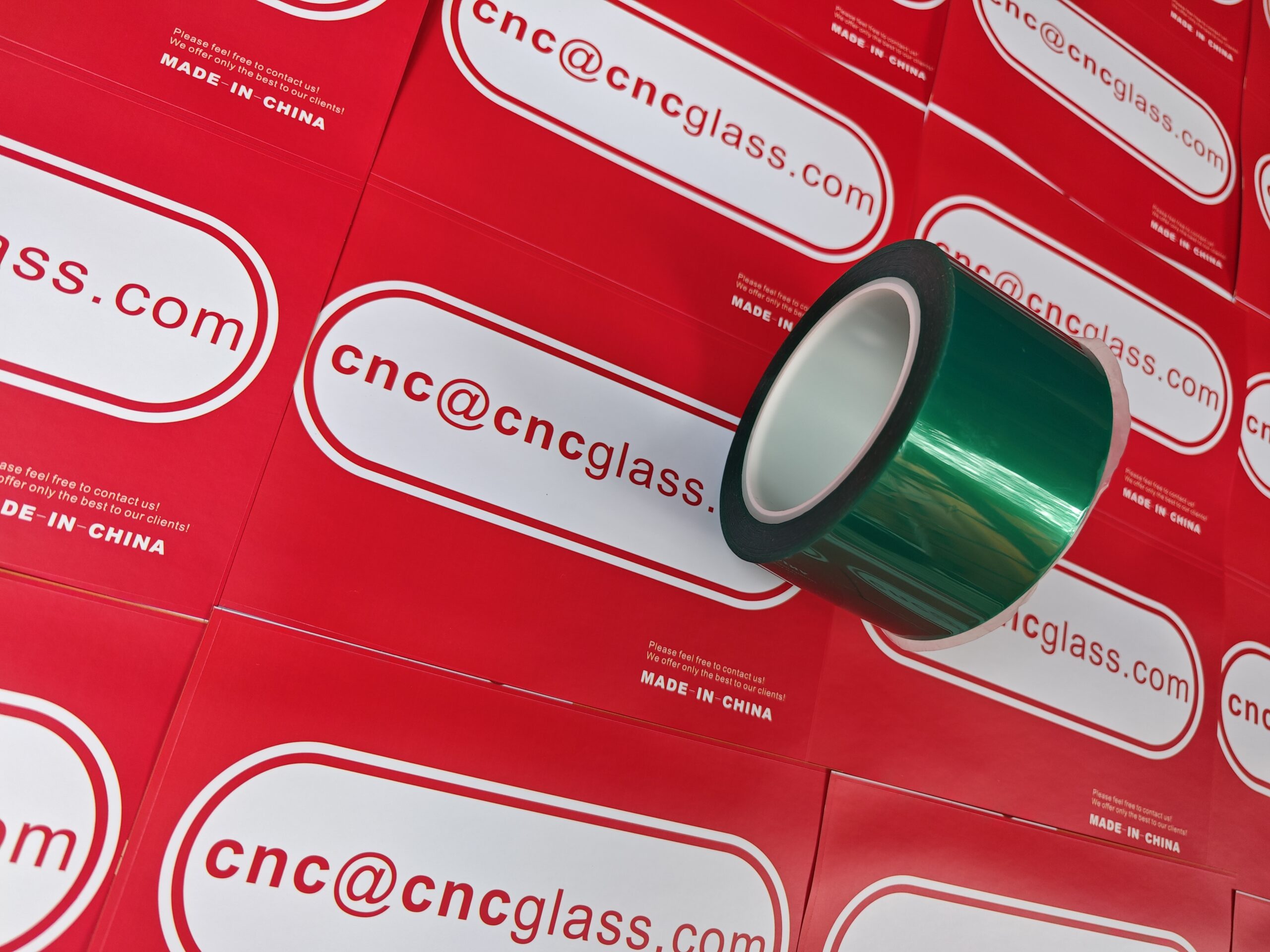

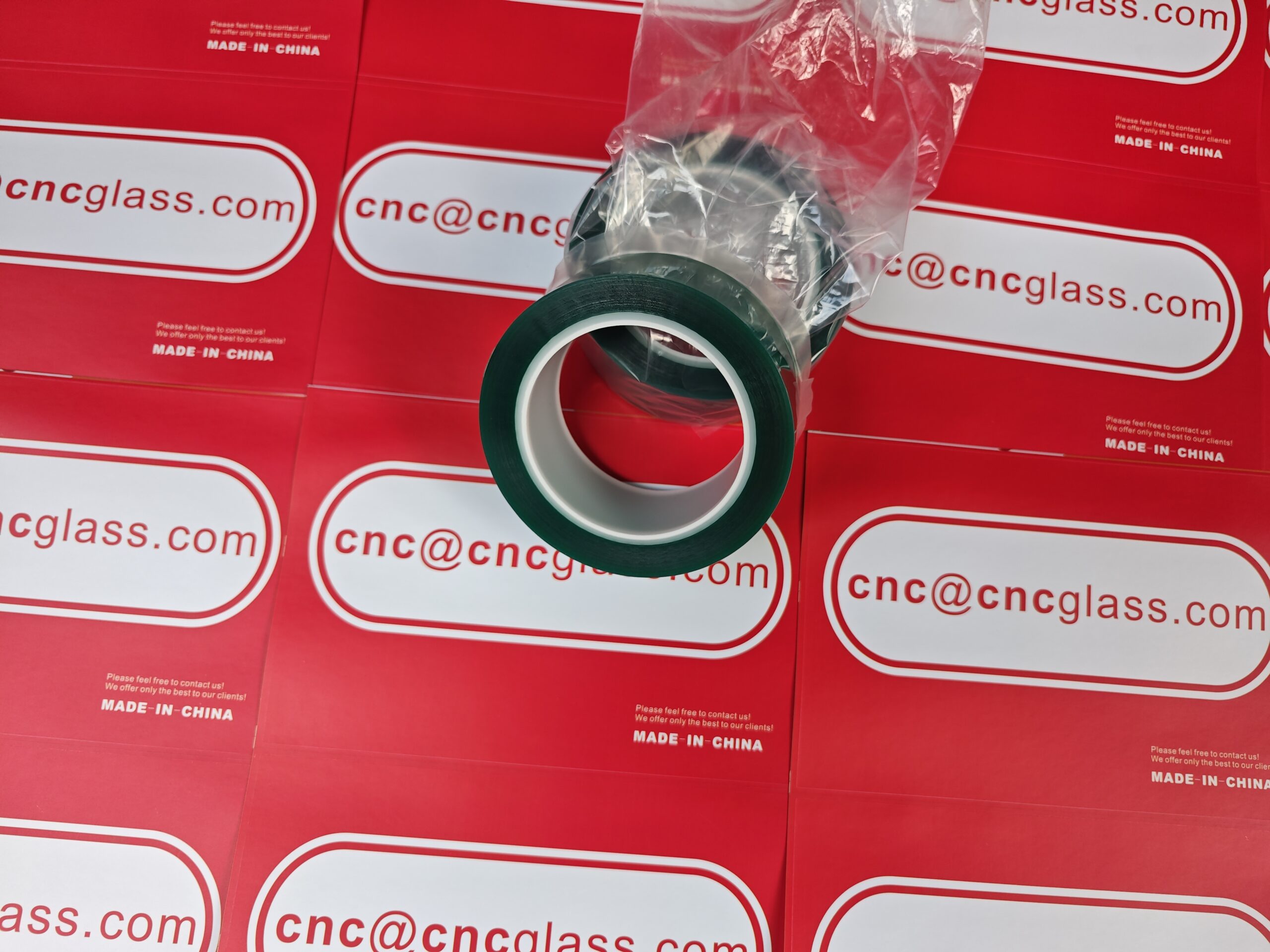

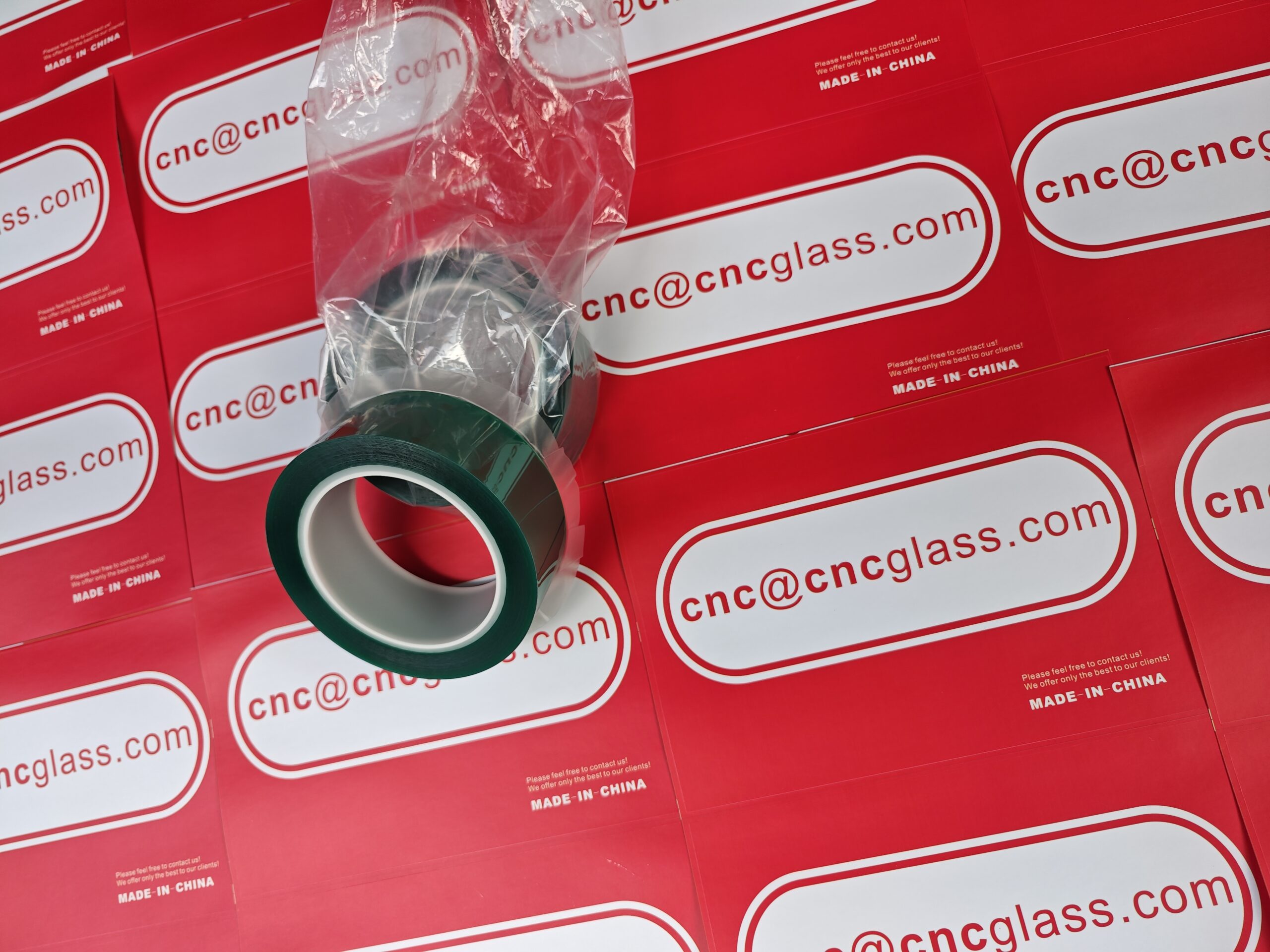

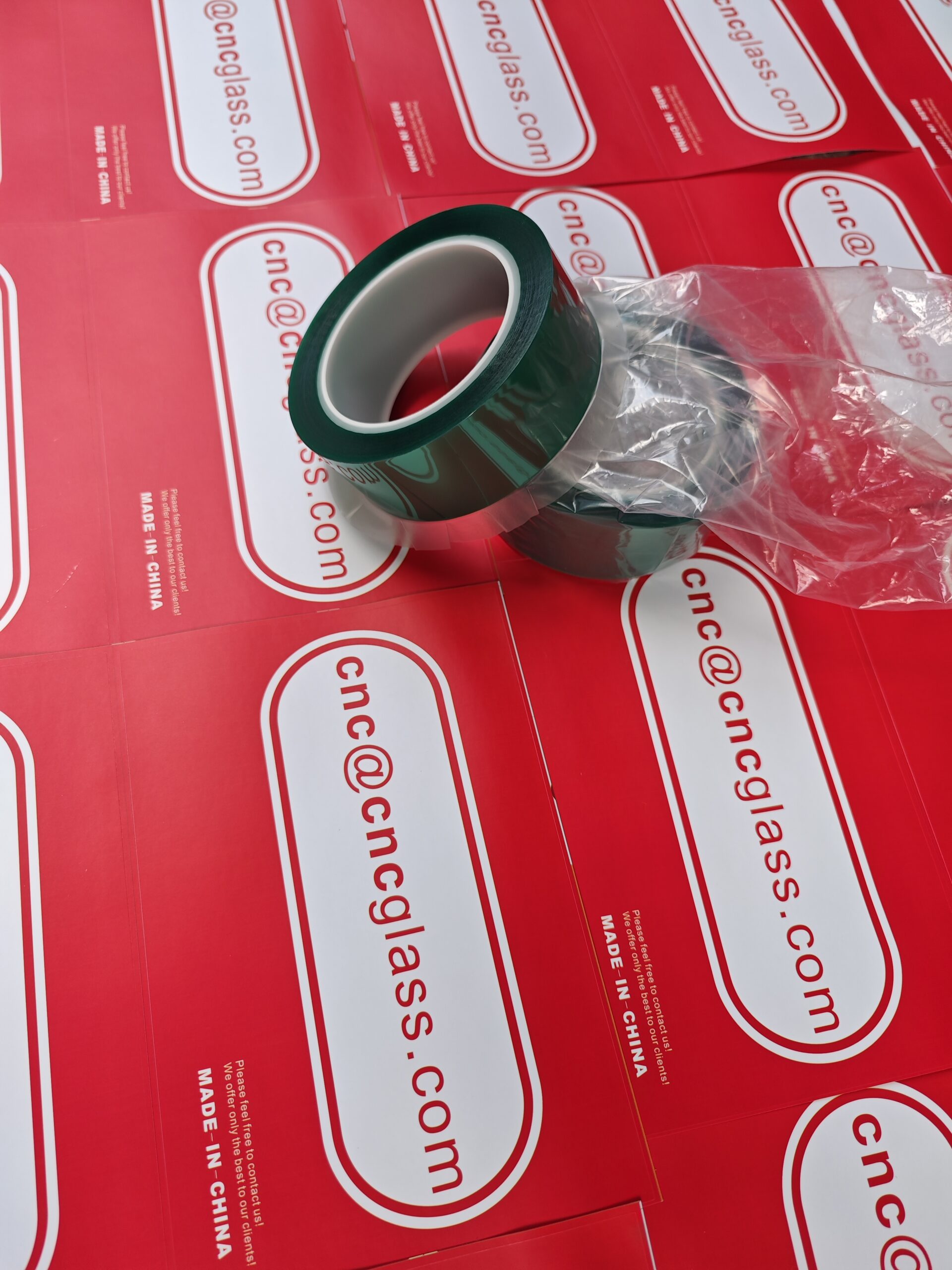

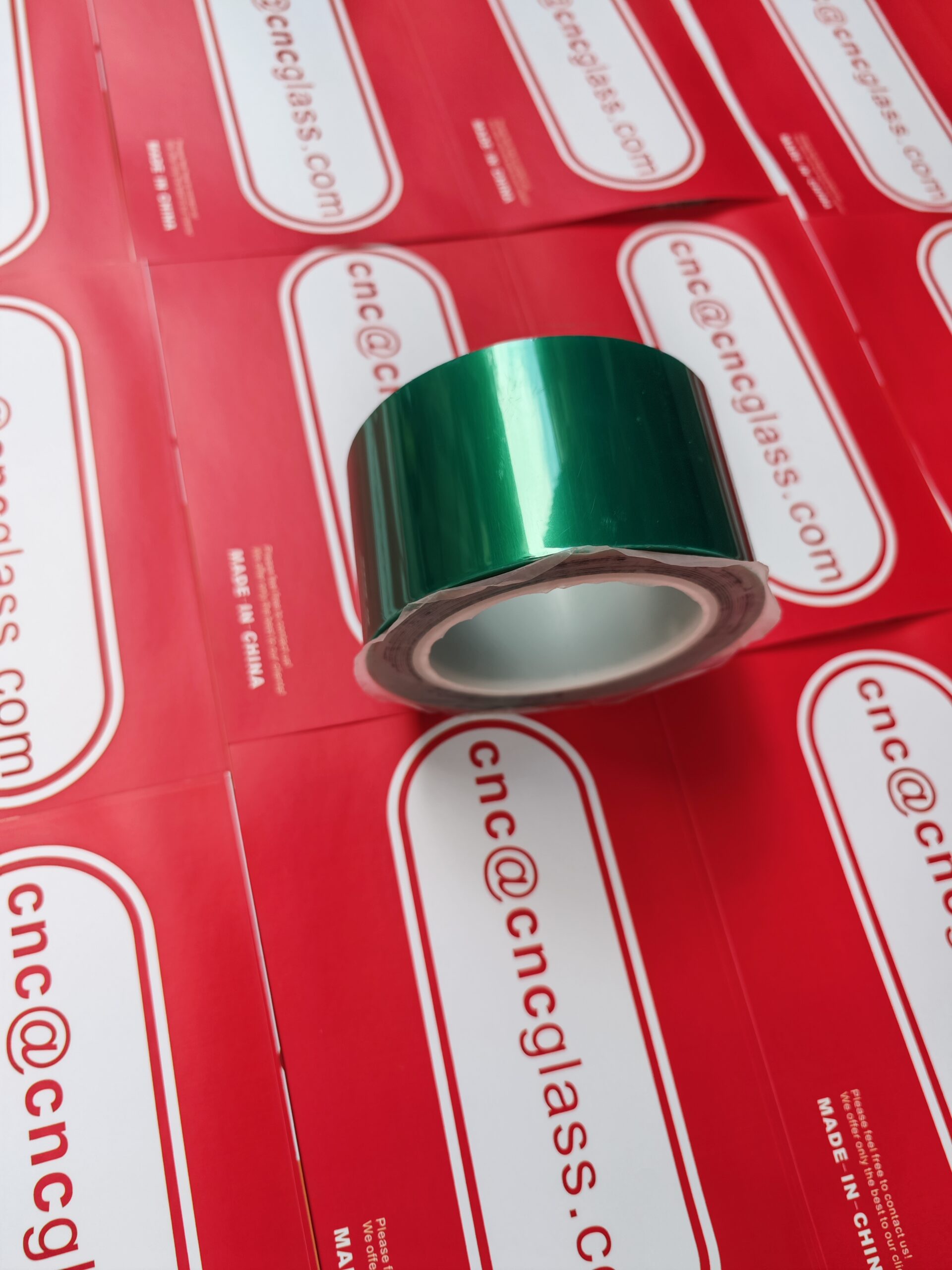

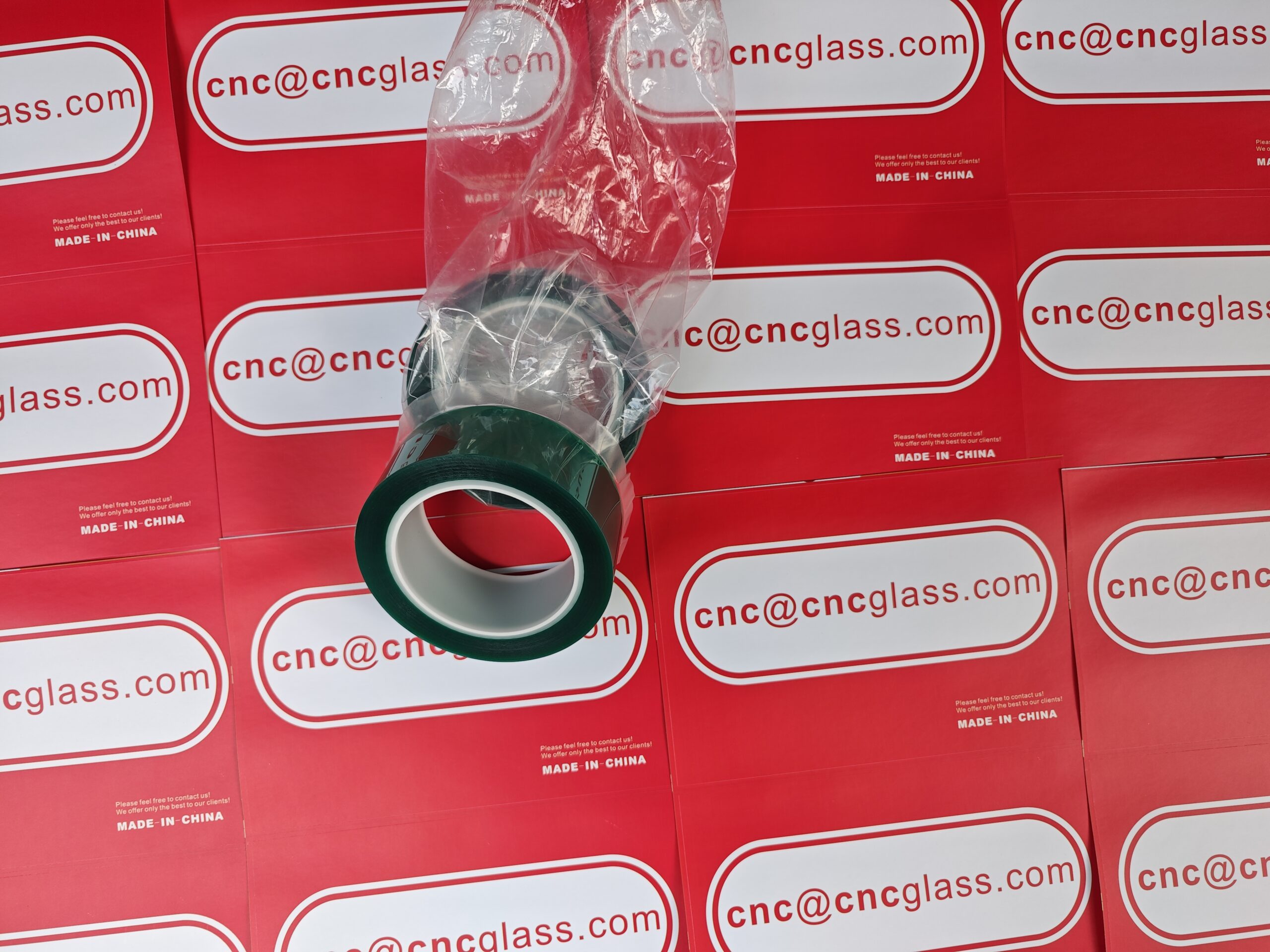

The catalog also includes product and application photographs of the tape used on laminated glass edges, including curved or bent glass. This catalog does not list prices. Enquiries can be sent to cnc@cncglass.com. The full catalog is in the PDF below.
